PIC TIMER CALCULATOR

Beta Version 1.0

INTRODUCTION

The Pic Timer Calculator will calculate the real time period of the various timers associated with most of the PIC 16F series. No longer will you need to adjust and load a PIC with your code to get the timer periods right, the Pic Timer calculator will do that for you!

To install, download the PicTimerCalcV1.zip and unzip to a directory named "PicTimerCalc" or a directory of your choice. To run the program, click on PicTimerCalcV1.exe in your unzipped folder or directory.

Addendum Version 2 now ready for testing.

Dowload File : PicTimerCalcV2.zip

The program was written using Easy Tools (a scripting tool, similar to basic).Easy Tools is fantastic for building graphical user interfaces for communicating with pic chips. Check out the site http://www.easyvitools.com/index.html

The program does not create any "*.dll" files or modify the windows registry and only takes up 1.5 Mb of disk space. To remove the calculator, just delete the directory you downloaded it to.

NB. This is the beta version of this tool. If you find any errors or mistakes please let me know by contacting HighcoPic on the Proton forum. Please dont distribute until all its mathematics are proven to be correct!

Have fun, let me know what you think!



USER INSTRUCTIONS:

Contents:

1. Timer Type

2. Oscillator Frequency

3. Timer Offset

4. Low/High Byte Offset

5. Prescaler Ratio

6. PostScaler Ratio

7. PR2 Offset

8. Instruct Cycle Time

9. Timer Period

10.Help

11.Display Code Example

12.Question\Answers\Problems

1. TIMER TYPE

Use the "Timer Type" drop down box to select the timer you wish to calculate. There are three Timers associated with the 16F series Pics and each one has different features. These features will appear as you select the required timer.



2. OSCILLATOR FREQUENCY

Set the "Oscillator frequency" by enetering the freq. in the box in megahertz. Frequencies accepetd are 0.000001 Mhz (1 hz) up to 999 Mhz.

The default setting is 4 Mhz.

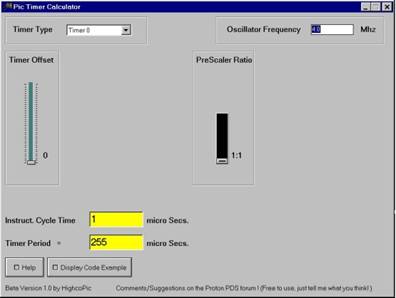

3.TIMER OFFSET

The 3 timers,(Timer0, Timer1, Timer2) are all readable and writable timers. This means that you can load or offset a timer with a preset ammount, making the timer period shorter than default. i.e. timer 0 counts from 0 to 255, sets its rollover flag (which must be cleared in software) and counts again from 0 to 255. If you set the offset to, for example 100, the timer would count from 100 to 255, sets its rollover flag, you then load the timer in software with the offset and it counts from 100 again.The above example is for timer 0.Adjust the offset amount by moving the slider up or down with the up/down arrows for fine steps or the mouse.

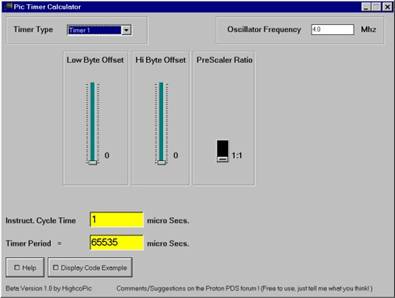

4.LOW BYTE OFFSET / HIGH BYTE OFFSET

Timer 1 has two registers, low and high, making it a 16 bit timer. (counts from 0 to 65535). Both of these are readable and writable as per above in "Timer offset". By adjusting these values, very fine adjustments can be made to the timing algorithm. As above, these values have to be loaded in software. Adjust the offset amount by moving the slider up or down with the up/down arrows for fine steps or the mouse.

5. PRESCALER RATIO

All three timers have a pre-scaler. With the pre-scaler set to off or 1:1 the timer increments on every clock instruction cycle. With the prescaler set to, i.e. 4:1, the timer increments once for every 4 clock instruction cycles. This increases the timer period. Adjust the pre-scaler setting by moving the slider switch up or down.

6.POST SCALER RATIO

The post-scaler is only available on timer 2. The post scaler operates on a similar principal to the above, but occurs after the timer has rolled over, and "post scales" the rollovers to the timer flag section. With it set to 4:1 for example, 4 "rollovers" would occur before the timer flag was set.This increases the timer period. Adjust the pre-scaler setting by moving the slider switch up or down.

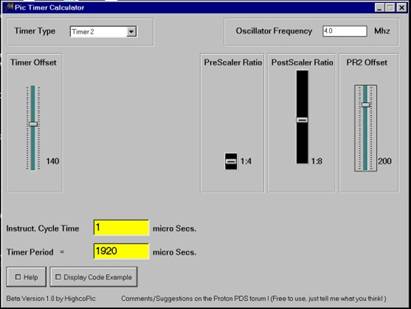

7. PR2 OFFSET

Timer 2 has an 8 bit period register that is adjustable from 0 to 255. You can set this so that the timer counts up to the PR2 value, then rolls over.i.e. setting this to 100 , the timer would count from 0 to 100, then rollover back to 0.Adjust the offset amount by moving the slider up or down.

8. INSTRUCT CYCLE TIME

This displays the instruction cycle time and is dependant only on the Oscillator Frequency. Higher the frequency, quicker the instruction cycle time.

9. TIMER PERIOD

This displays the timer period result after setting/selecting the required parameters. Occurs instantly so you can see the effects of changing the register settings.

10. HELP

Displays the help window with this text that you are reading now. Click again to hide the help window.

11. DISPLAY CODE EXAMPLE

This is not yet complete in this version, but my intentions are to display an example of code with the settings you have made!

12. QUESTION\ANSWERS

Q.Timer 0 calculation is out by 2?

A. This is correct. In 16F series Pics, Timer 0 has a 2 count delay if written to or if the prescaler is changed. If this is a problem, adjust it by two in your code. Timer 1 & 2, as far as I can see, don’t have this problem.

Q. The timers have different pre-scaler settings. Is this correct?

A. Yes, this is correct (check data sheets for the device you are using)

Q. When will the "display code example" button work?

A. Soon........!
