Re: Using the Arduino Ethernet shield with AMICUS18 (Part 4)

...continued from Part3 ...

In the W5100 there's a total of 8k of RAM reserved for the sockets receive memory buffer as well as 8k for the sockets transmit memory buffer. The memory can be assigned to each socket in various configuration by writing to the RMSR and TMSR registers. By default both these registers are set to $55 which assigns 2k of RX and TX memory to each of the four sockets. Since we're only about to use one socket we COULD assign then full 8k of each buffer to socket 0 but for this exercise we'll just leave it at the default.

Once we've established a connection with the client we can determine if any data has been received by reading the sockets Received Size register. The value returned tells us the number of "new" bytes in the sockets receive buffer. What it doesn't tell us is where in the buffer these bytes are....

The sockets receive (and transmit) buffers are circular buffers meaning once they hit the highest memory adress they wrap around and start over at the beginning. The first byte we're interested in might be somewhere in the middle of the buffer and the last byte might be just before it even though it intuitively should be after the first byte. And, because all four sockets are assigned a "segment" of memory out of a total of 8k the actual start and end adresses of each sockets buffer can "move around" depending on the amount of memory assigned to each socket. If we take a look at the bottom of the W5100_defs.pbp file posted earlier we'll find this:
These are the physical start and end adresses for each sockets RX memory buffer when they are each assigned 2k of memory. If the memory allocation between sockets are changed these constants must be updated to reflect the start and end adress of each sockets memory area.

OK, so how do we know where in the buffer our new data is? This is done by reading the sockets RX Read Pointer register but unfortunately this doesn't give us the real adress of the data, instead it gives us an offset into the sockets memory area. If the value of the pointer is 0 then the first byte of our new data is located at the start-adress of the sockets RX memory ($6000 in this case), if the value is $123 then the first byte is located at adress $6123. Not to bad.... But to make it a bit more complicated this pointer doesn't wrap around "in sync" with the circular buffer. The Rx Read Pointer register is a 16bit register meaning it counts from 0 to 65535 even though we only have 2048 bytes assigned to our buffer - so where is our data when the pointer value is $1234?

This is where the sockets RX_MASK constant defined in the W5100_defs.pbp file comes in. When the raw pointer value is bitwise AND'ed with the RX_MASK value we'll get the correct offset into the sockets buffer. If we then add this offset to the physical start adress of sockets buffer we finally have the physical adress of the first byte of new data in the buffer.

So now we know where the first byte of our new data is as well as how many byte there is to read, now we only need to figure out where the last byte is. Given the above this shouldn't be too hard to do... If the adress of the first byte plus the total number of bytes does not "extend" beyond the end of the buffer (no buffer wrap-around) we're done - just read from first byte to first byte + number of bytes. But if it does "extend" beyond the end of the buffer we need to first read up to the end of the buffer, then start over at the beginning, subtracting the number of bytes already accounted for and continue reading. I've wrapped all of this into, yet another, subroutine:
When returning from this subroutine the physical adress of the first byte as well as that of the last byte of new data are available to us in the WizStart and WizEnd variables. If WizEnd is less than WizStart the buffer has wrapped around and we need to account for that when actually "extracting" the data. If WizEnd is bigger than [/i]WizStart[/i] then it's as simple as reading from the WizStart to WizEnd.
When all data have been "extracted" from the buffer we have to tell the W5100 that we're done so it can recycle that memory for new data that comes in. This is done by first updating the RX Read pointer register so it points to where we left off and finally issuing the RECV command to the sockets command register. Issuing the RECV command tells the W5100 that we're done with the recevied data up to the "adress" of the newly written RX Read pointer register.

Finally, since we're currently not responding to the request from the client, we simply disconnect and switch back into Listen mode. Not very polite but it'll look the browser as if no one is at the other end so it's OK for now.

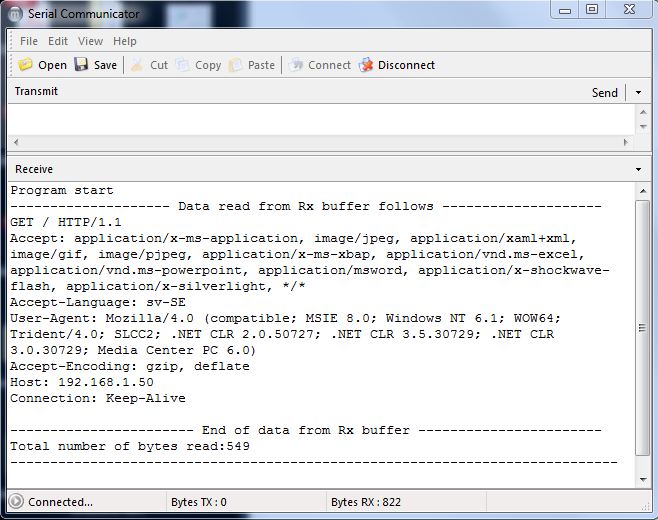

Using the above code you'll be able to "see" the HTTP GET request issued by a web-browser pointing at the W5100's IP-adress:


To this post I've attached the exact file I compiled to arrive at the screenshot above (remove .txt extension), you'll also need the W5100_defs.pbp posted earlier in the thread.

/Henrik.
